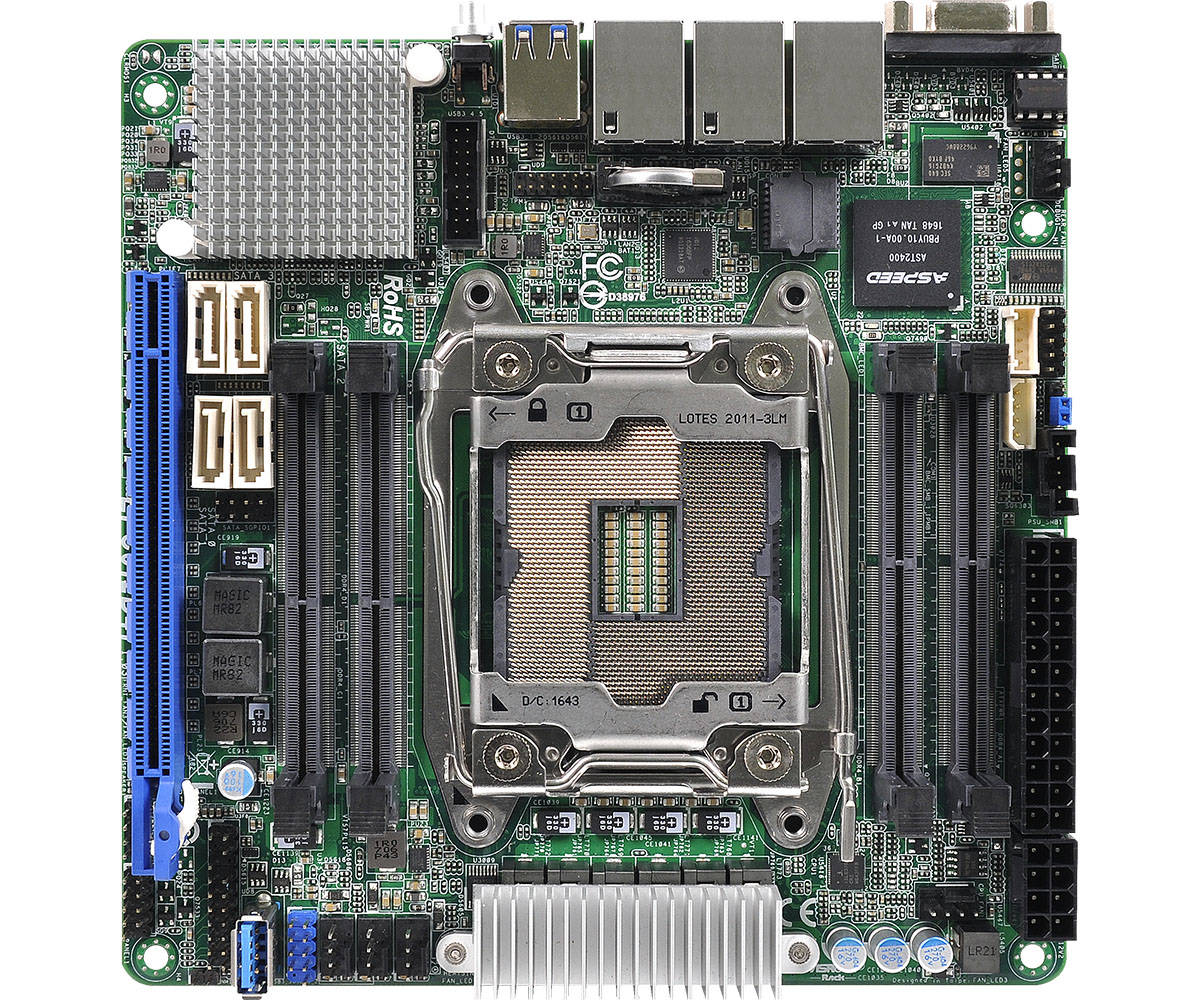

| Параметры материнской платы |
| Форм-фактор |
- Mini ITX |
| Габариты |
- 6.7'' x 6.7'' (17.02 cm x17.02 cm) |
| Блок процессора |
| CPU |
- Intel® Xeon® processor E5-1600/2600 v3/v4 series*
*BIOS version 2.0 or above is required for v4 series. |
| Разъем |
- Single Socket LGA 2011 R3*
*Please use narrow type CPU Cooler |
| Чипсет |
- Intel C612 |
| Память |
| Емкость |
- 4 DIMM slots |
| Тип |
- Quad Channel memory technology
- Supports DDR4 2400*/2133**/1866/1600 ECC SO-DIMM
Only E5-2600 V4 CPUs support DDR4 2400.
2133 support one DIMM per channel. |
| DIMM Size Per DIMM |
- ECC SO-DIMM: 16GB, 8GB, 4GB |
| Напряжение |
0.9V - 1.5V |
| Слоты расширения |
| PCIe 3.0 x 16 |
- 1 slot |
| Накопители данных |
| Контроллер SATA |
- Intel® C612: 4 x SATA3 6Gb/s, support Intel® RSTe 4.0 RAID 0, 1, 5,10 |
| Сеть |
| Интерфейс |
- 1000 /100 /10 Mbps |
| Контроллер LAN |
- 2 x RJ45 by Intel® i210 + Intel® i217LM
- 1 x RJ45 Dedicated IPMI LAN port
- Supports Wake-On-LAN
- Supports Energy Efficient Ethernet 802.3az
- Supports Dual LAN with Teaming function*
- Supports PXE
- LAN1 supports NCSI
* |
| Управление |
| Контроллер BMC |
- ASPEED AST2400 |
| IPMI Dedicated GLAN |
- 1 x Realtek RTL8211E for dedicated management GLAN |
| Функции |
- Watch Dog
- NMI |
| Графика |
| Контроллер |
- ASPEED AST2400 |
| VRAM |
- DDR3 16MB |

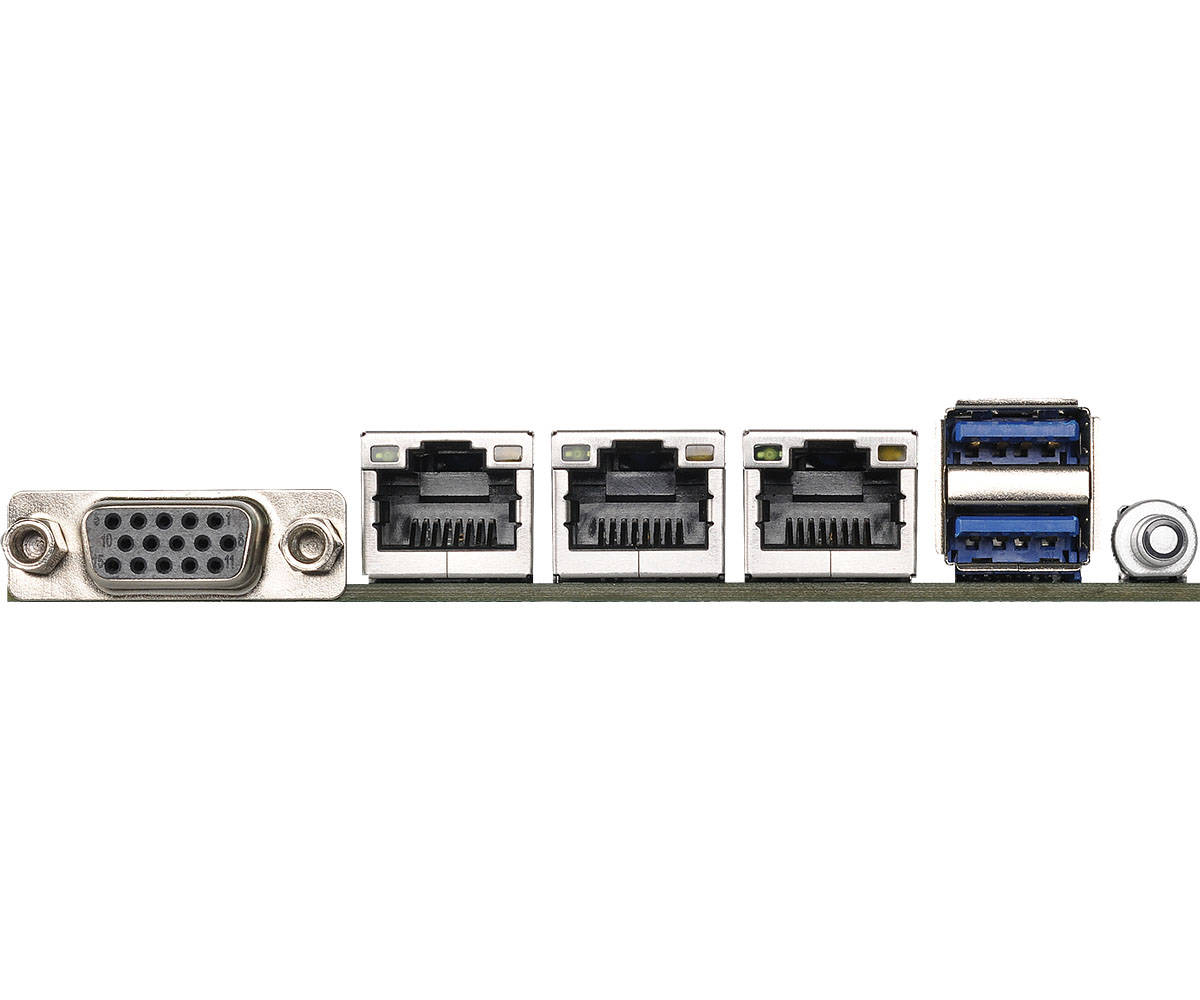

| Входы/выходы задней панели |
| Порт VGA |
- 1 x D-Sub |
| Порты USB 3.0 |
- 2 |
| Порт Lan |
- RJ45: 2 + 1 (IPMI)
- LAN Ports with LED (ACT/LINK LED and SPEED LED) |
| UID Button/UID LED |
- 1 |
| Internal Connector |
| Auxiliary Panel Header |
- 1 (include chassis intrusion, location button & LED, front LAN LED, and system fault LED) |
| TPM |
- 1 |
| IPMB |
- 1 |
| Вентилятор |
- 1x CPU Fan, 4x system Fan (4-pin) |
| Питание ATX |
- 1 (24-pin) + 1 (8-pin) |
| USB 3.1 (Gen1) Header |
- 1 (support 2 USB 3.0) |
| USB 2.0 |
- 1 (support 2 USB 2.0) |
| Порт USB 3.1 (Gen1) тип А |
- 1 |
| BMC_SMB Header |
- 1 |
| BIOS |
| Тип BIOS |
- 128Mb AMI UEFI Legal BIOS |
| Особенности BIOS |
- Plug and Play (PnP)
- ACPI 2.0 Compliance Wake Up Events
- SMBIOS 2.8.0 Support
- ASRock Rack Instant Flash |
| Аппаратный мониторинг |
| Температура |
- CPU Temperature Sensing
- System Temperature Sensing |
| Вентилятор |
- CPU/Rear/Front Fan Tachometer
- CPU Quiet Fan (Allow Chassis Fan Speed Auto-Adjust by CPU Temperature)
- CPU/Rear/Front Fan Multi-Speed Control |
| Напряжение |
- Voltage Monitoring: +12V, +5V, +3.3V, CPU Vcore, DRAM, 1.05V_PCH, +1.5V_PCH, +BAT, 3VSB, 5VSB |
| Совместимые ОС |
| ОС |
Microsoft® Windows®
- Server 2008 R2 SP1 (64 bit)
- Server 2012 (64 bit)
- Server 2012 R2 (64 bit)
- Server 2016 (64 bit)
Linux
- RedHat Enterprise Linux Server 6.5 (32 / 64 bit)
- CentOS 5.10 / 6.5 (32 / 64 bit)
- SUSE Enterprise Linux Server 11 SP3 (32 / 64 bit)
- FreeBSD 9.2 (32 / 64 bit)
- Fedora core 19 (64 bit)
- Ubuntu 12.04.2 (64 bit) / 12.10 (64 bit)
Virtual
- VMWare® ESXi 5.5 |
| Условия эксплуатации |
| Температура |
- Operation temperature Range: 10°C ~ 35°C / Non operation temperature: -40°C ~ 70°C |
