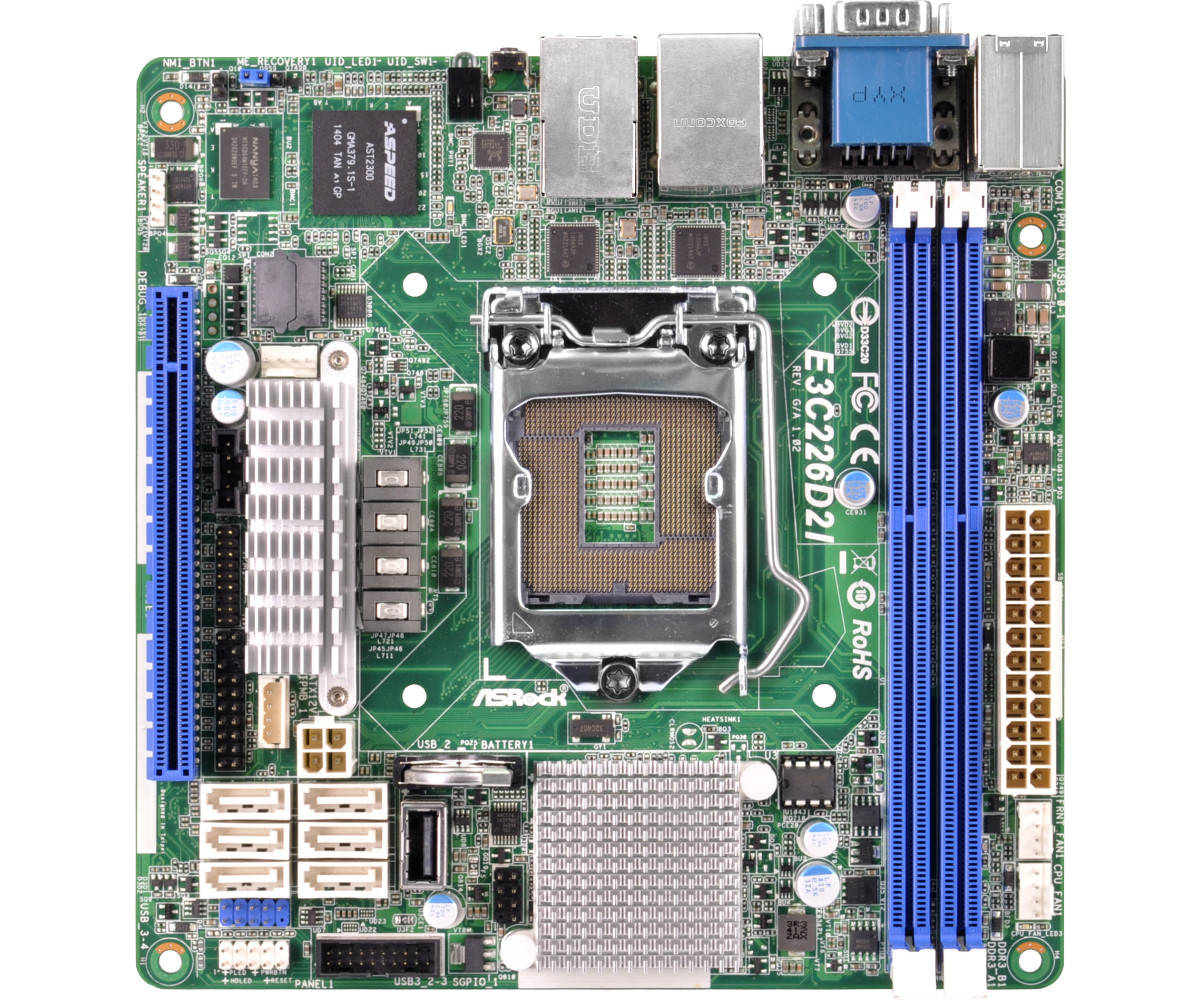

| Параметры материнской платы |
| Форм-фактор |
- Mini ITX |
| Габариты |
- 6.7'' x 6.7'' (17.02 cm x17.02 cm) |
| Блок процессора |
| CPU |
- Supports Intel® Xeon® E3-1200 v3/v4* and 5th/4th Generation Core™ i7/i5/i3/Pentium®/Celeron® Processors (Socket 1150)
- Supports Hyper-Threading Technology
* BIOS version 3.0 or above is required
Due to Graphics control by AST2300, E3-1200 series integrated graphics can’t be used. |
| Разъем |
- Single Socket H3 (LGA1150) |
| Питание |
- 4 Power Phase Design |
| Чипсет |
- Intel® C226 |
| Память |
| Емкость |
- 2 x 240-pin DDR3 DIMM slots
- Support up to 16GB DDR3 ECC UDIMM |
| Тип |
- Dual Channel memory technology
- Supports DDR3 1600/1333 ECC/non-ECC* UDIMM memory
*non-ECC UDIMM support Client OS only. |
| DIMM Size Per DIMM |
- DIMM Size Per DIMM: 8GB, 4GB, 2GB, 1GB |
| Напряжение |
- 1.5V, 1.35V |
| Слоты расширения |
| PCIe 3.0 x 16 |
- 1 slot (x16 mode) |
| Накопители данных |
| Контроллер SATA |
- Intel® C226 : 6 x SATA3 6.0 Gb/s, Support RAID 0, 1, 5, 10 and Intel® Rapid Storage |
| Сеть |
| Интерфейс |
- Gigabit LAN 10/100/1000 Mb/s |
| Контроллер LAN |
- 2 x Intel® i210
- Supports Wake-On-LAN
- Supports Energy Efficient Ethernet 802.3az
- Supports Dual LAN with Teaming function
- Supports PXE |
| Управление |
| Контроллер BMC |
- ASPEED AST2300 : IPMI (Intelligent Platform Management Interface) 2.0 with iKVM support |
| IPMI Dedicated GLAN |
- 1 x Realtek RTL8211E for dedicated management LAN |
| Функции |
- Watch Dog
- NMI |
| Графика |
| Контроллер |
- ASPEED AST2300 |
| VRAM |
- DDR3 16MB |
| Вывод |
- Supports D-Sub with max. resolution up to 1920x1200 @ 60Hz |

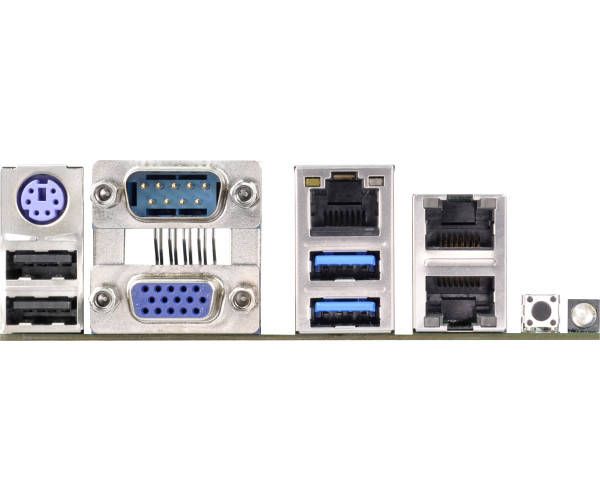

| Входы/выходы задней панели |
| PS/2 KB/Mouse |
- 1 |
| Порт VGA |
- D-sub x 1 |
| Порты USB 2.0 |
- 2 |
| Порты USB 3.0 |
- 2 |
| Порт Lan |
- 2 x RJ45 Gigabit Ethernet LAN ports
- 1 x RJ45 Dedicated IPMI LAN port
- LAN Ports with LED (ACT/LINK LED and SPEED LED) |
| Последовательный порт |
- 1 (COM1) |
| UID Button/UID LED |
- 1 |
| Internal Connector |
| COM |
- 1 (COM2) |
| Auxiliary Panel Header |
- 1 (include chassis intrusion, location button & LED, front LAN LED) |
| IPMB |
- 1 |
| Вентилятор |
- 3 x 4-pin |
| Питание ATX |
- 1 (24-pin) + 1 (4-pin) |
| USB 3.1 (Gen1) Header |
- 1 (each support 2 USB 3.0) |
| USB 2.0 |
- 1 (each support 2 USB 2.0) |
| Порт USB 2.0 тип А |
- 1 |
| BIOS |
| Тип BIOS |
- 64Mb AMI UEFI Legal BIOS |
| Особенности BIOS |
- Plug and Play (PnP)
- ACPI 1.1 Compliance Wake Up Events
- SMBIOS 2.3.1 Support
- DRAM Voltage Multi-adjustment
- ASRock Instant Flash |
| Аппаратный мониторинг |
| Температура |
- CPU Temperature Sensing
- System Temperature Sensing |
| Вентилятор |
- CPU/Rear/Front Fan Tachometer
- CPU Quiet Fan (Allow CPU Fan Speed Auto-Adjust by CPU Temperature)
- CPU/Rear/Front Fan Multi-Speed Control |
| Напряжение |
- Voltage Monitoring: +12V, +5V, +3.3V, CPU Vcore, DRAM, 1.05V_PCH, +BAT, 3VSB, 5VSB |
| Совместимые ОС |
| ОС |
Microsoft® Windows®
- Server 2008 R2 (x64)
- Server 2012 (x64)
Linux
- RedHat Enterprise Linux Server 5.5/6.4 (x32 and x64)
- CentOS 5.5 / 6.4 (x32 and x64)
- SUSE Enterprise Linux Server 11 SP1 (x32 and x64)
- FreeBSD 9.1 (x32/x64)
- Fedora core 18 (x64)
- Ubuntu 12.04/12.10 (x64)
Virtual
- VMWare® ESXi 5.1
- VMWare® ESXi 5.5 (AHCI mode) |
| Условия эксплуатации |
| Температура |
- Operation temperature Range: 10°C ~ 35°C / Non operation temperature: -40°C ~ 70°C |
