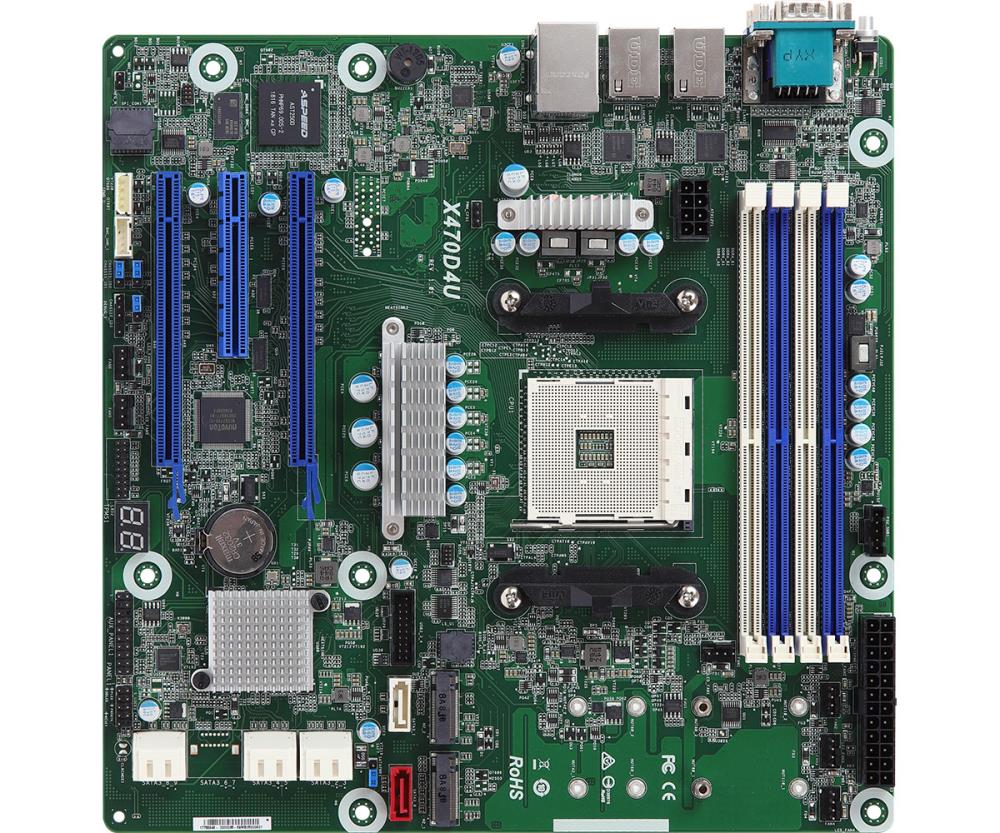

| Параметры материнской платы |
| Форм-фактор |
- mATX |
| Габариты |
- 9.6'' x 9.6'' (24.4 cm x 24.4 cm) |
| Блок процессора |
| CPU |
- AMD AM4 Socket Ryzen™ PRO/ Ryzen™ 2nd and 3rd generation series processors |
| Разъем |
- AM4 PGA 1331 |
| Чипсет |
- AMD Promontory X470 |
| Память |
| Емкость |
- 4 x 288-pin DDR4 DIMM slots
- Support up to 128GB DDR4 ECC/UDIMM
- One DIMM: 1R DIMM @2667MT/s; 2R/2DR DIMM @2400MT/s
- Two DIMMs: (1) 1R DIMM @2133 MT/s; (2) 2R/2DR DIMM @1866MT/s; 1R and 2R/2DR DIMM each @1866MT/s |
| Тип |
- Dual Channel DDR4 memory technology
- Support DDR4 ECC/UDIMM*
*For Picasso Ridge and Raven Ridge CPUs, ECC is only supported with PRO CPUs. |
| DIMM Size Per DIMM |
- ECC/UDIMM: 32GB, 16GB, 8GB |
| DIMM Frequency |
- ECC/UDIMM: 3200/2933/2666/2400/2133 MHz |
| Напряжение |
- 1.2V |
| Слоты расширения |
| PCIe 3.0 x 16 |
- PCIE6: Gen3 x16 link (splittable in x4/4/4/4); auto switch to x8 link when PCIE4 is occupied.
- SLOT4: Gen3 x8 link |
| PCIe 3.0 x 8 |
- SLOT5: Gen3 x4 link |
| Накопители данных |
| Контроллер SATA |
- 6 x SATA3 6.0 Gb/s (1x SATA DOM port), support RAID 0, 1, 10 |
| Additional Storage Controller |
- Asmedia 1061: 2x SATA3 6.0Gb/s |
| M.2 slot |
- 2 (2242/2260/2280/22110, supports SATA3 and PCIe 3.0 x2 or supports PCIe 2.0 x4 only) |
| Сеть |
| Интерфейс |
- 1000 /100 /10 Mbps by Intel® i210AT |
| Контроллер LAN |
- 2 x RJ45 GLAN by Intel® i210AT
- 1 x RJ45 Dedicated IPMI LAN port
- Supports Wake-On-LAN
- Supports Energy Efficient Ethernet 802.3az
- Supports Dual LAN with Teaming function
- Supports PXE
- LAN1 supports NCSI |
| Управление |
| Контроллер BMC |
- ASPEED AST2500 |
| IPMI Dedicated GLAN |
- 1 x Realtek RTL8211E for dedicated management GLAN |
| Функции |
- Watch Dog |
| Графика |
| Контроллер |
- ASPEED AST2500 |
| VRAM |
- DDR4 16MB |

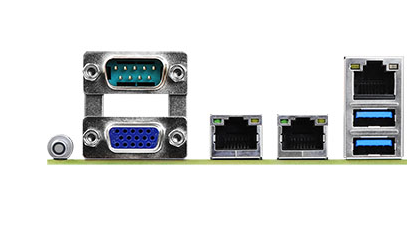

| Входы/выходы задней панели |
| Порт VGA |
- 1 x D-Sub |
| Порты USB 3.0 |
- 2 |
| Порт Lan |
- 2 x RJ45 Gigabit Ethernet LAN ports
- 1 x RJ45 Dedicated IPMI LAN port
- LAN Ports with LED (ACT/LINK LED and SPEED LED) |
| Последовательный порт |
- 1 |
| UID Button/UID LED |
- 1 |
| Internal Connector |
| COM |
- N/A |
| SATA DOM |
- 1 |
| M.2 |
- 2(M2_1: 2242/2260/2280/22110, PCIE(X4); M2_2:2242/2260/2280/22110, SATA/PCIE(X2)) |
| Auxiliary Panel Header |
- 1 (include C_CASEOPEN#、SYSTEM_FAULT_LED、LAN1 & LAN2 LED, location button & LED,BMC alert ) |
| TPM |
- 1 |
| IPMB |
- 1 |
| Зуммер |
- 1 |
| Вентилятор |
- 6 Fans x 4-pin (FAN1(CPU)/FAN2~FAN6(5Front)) |
| Питание ATX |
- 1x (24-pin) + 1x (8-pin) |
| USB 3.1 (Gen1) Header |
- 1 (supports 2 USB 3.1 Gen1 ports) |
| USB 2.0 |
- N/A |
| Динамик |
- N/A |
| BMC_SMB Header |
- 1 |
| ME/SPS Recovery |
- N/A |
| Clear CMOS |
- 1 (short pad) |
| PSU SMB Header |
- 1 |
| Onboard LED |
| Port 80 LED |
- 1 |
| Fan Fail LED |
- 6 (only Fan Fail LED) |
| BIOS |
| Тип BIOS |
- 16MB AMI UEFI Legal BIOS |
| Особенности BIOS |
- Plug and Play (PnP)
- ACPI 2.0 Compliance Wake Up Events
- SMBIOS 2.8.0 Support
- ASRock Rack Instant Flash |
| Аппаратный мониторинг |
| Температура |
- CPU/DDR temperature sensing
- MB/Card side temperature sensing |
| Вентилятор |
- Fan Tachometer
- Quiet Fan (Allow Chassis Fan Speed Auto-Adjust by CPU Temperature)
- Fan Multi-Speed Control |
| Напряжение |
- Voltage Monitoring: +12V, +5V, +3.3V, CPU Vcore, DRAM,1.05V_PCH, +BAT, 3VSB, 5VSB |
| Совместимые ОС |
| ОС |
Microsoft® Windows:
-Windows® 10 (64 bit)
Linux:
- UBuntu 16.04.4 (64 bit)
- RedHat Enterprise Linux Server 7.3 (64bit) / 7.4 (64bit)
* Please refer to our website for the latest OS support list.
* On Linux system doesn't support Raid mode
* Support UEFI BOOT only |
| Условия эксплуатации |
| Температура |
Operation temperature: 10°C ~ 35°C / Non operation temperature: -40°C ~ 70°C |
